Brand: MediCrystal®, ThermoGem™
Features:

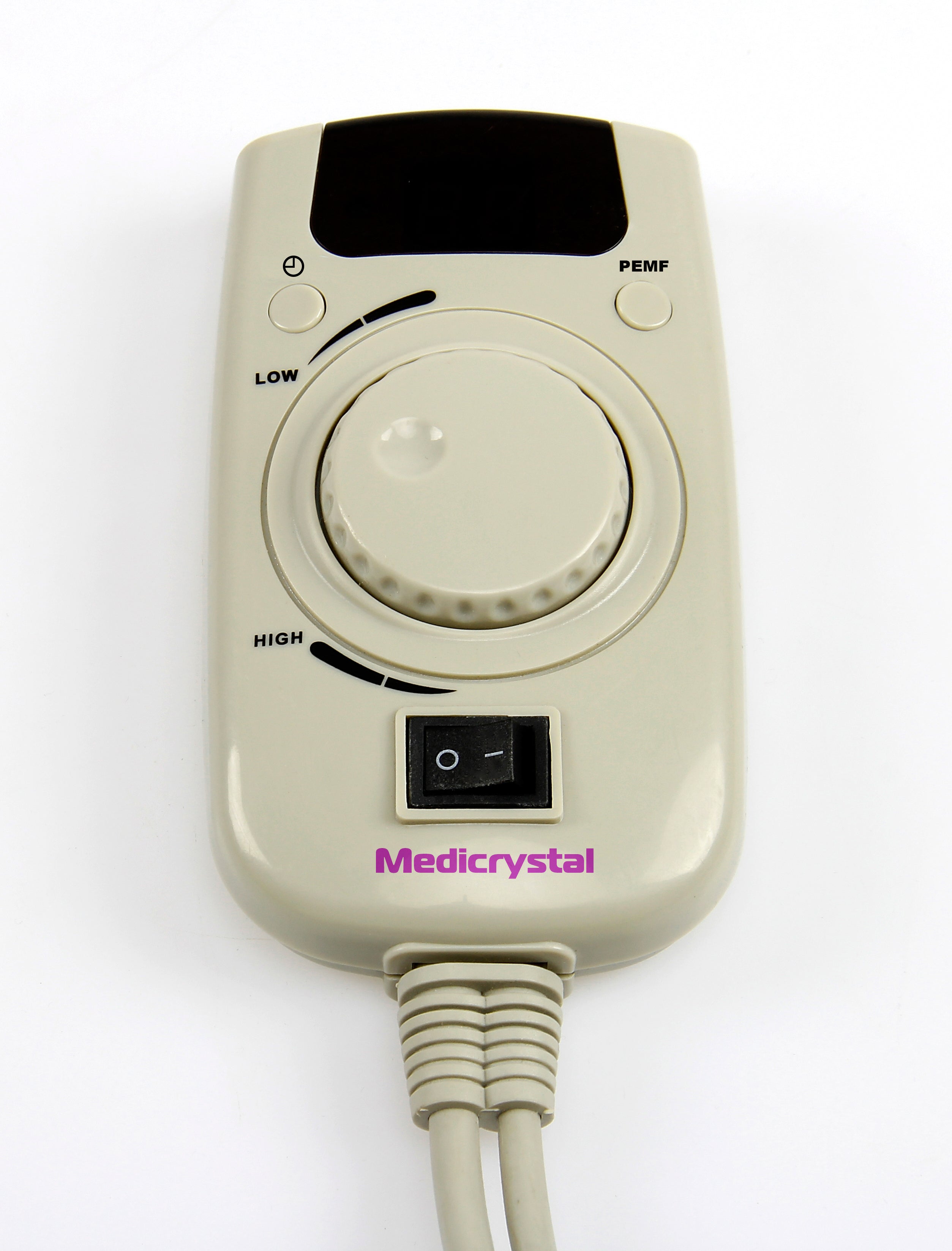

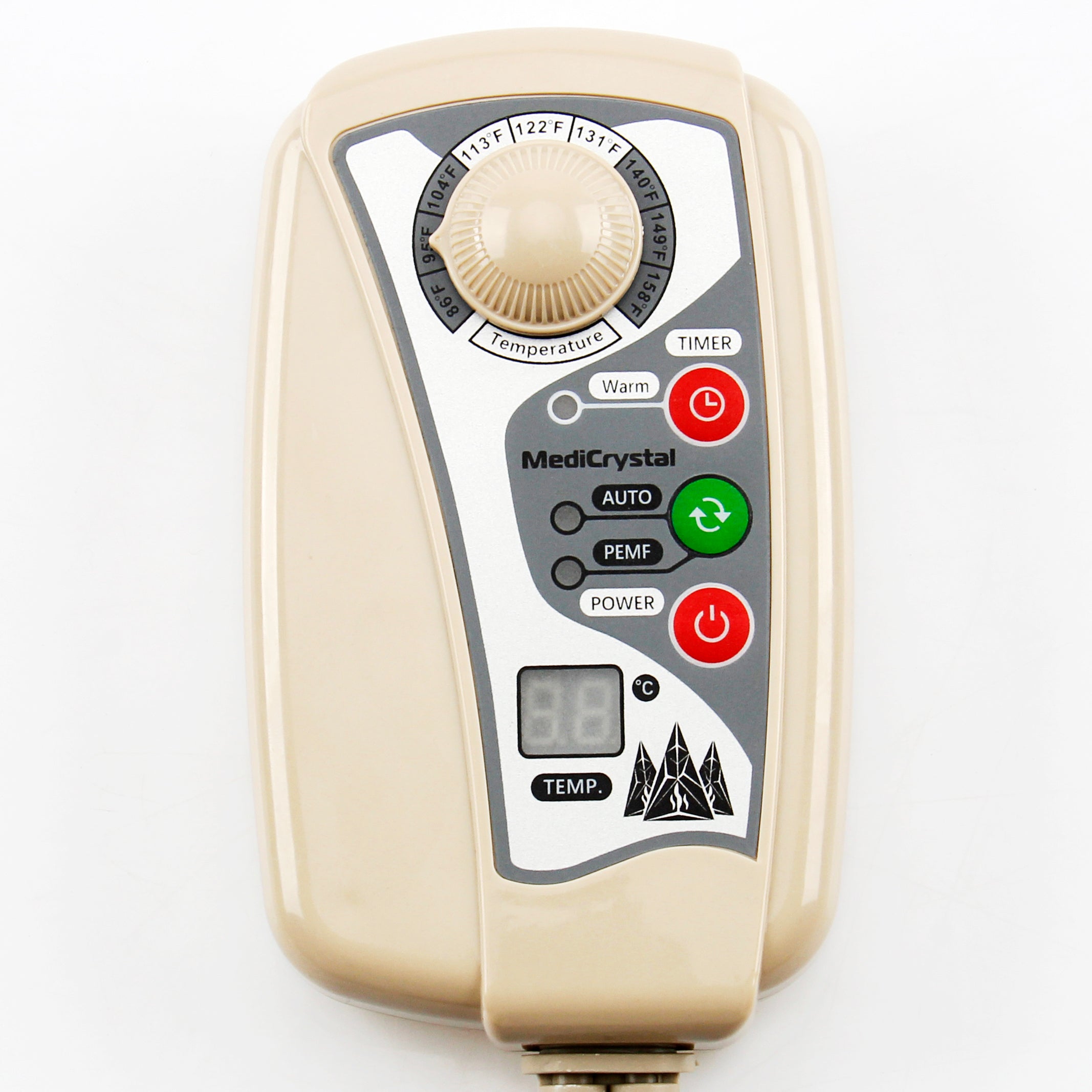

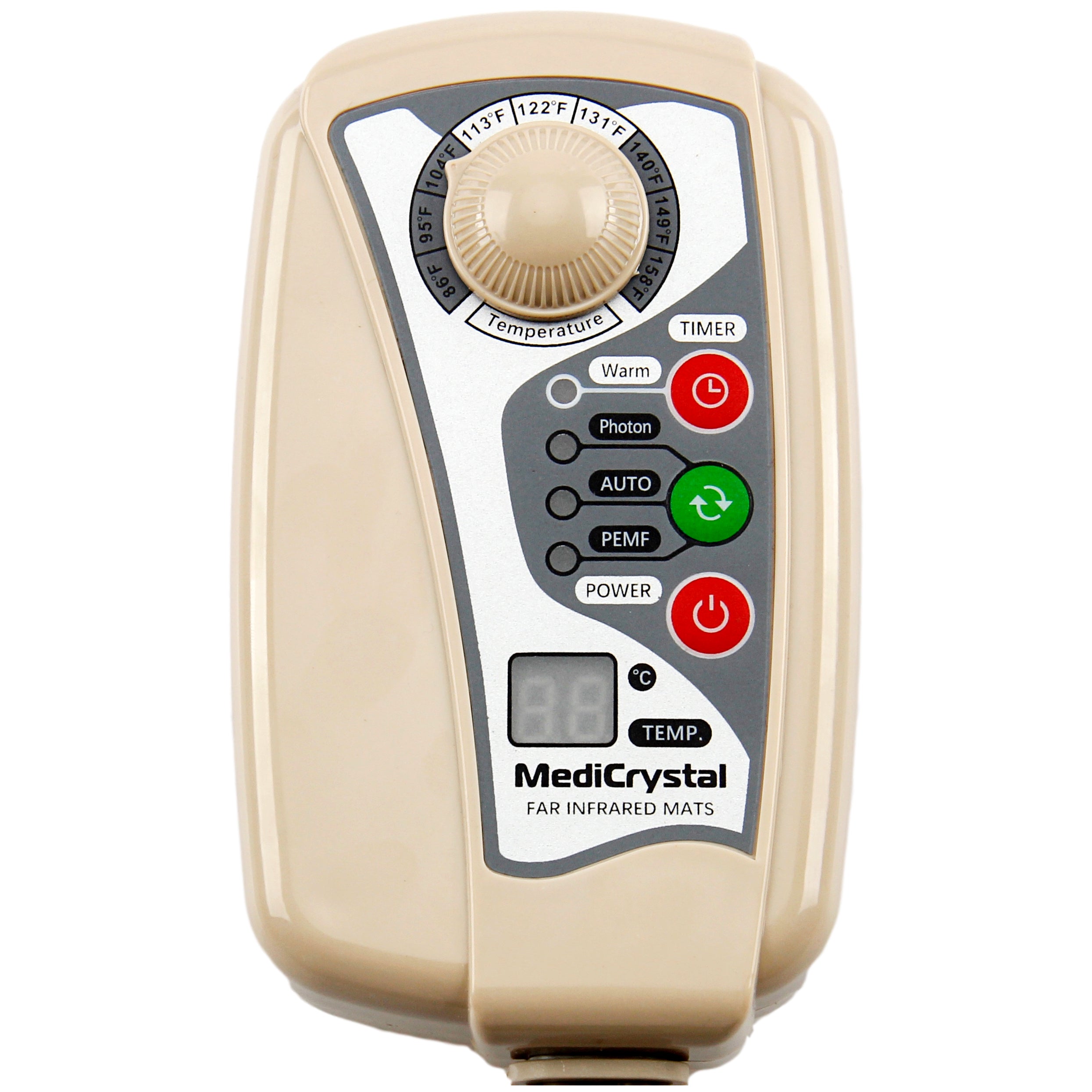

- Controllers for MediCrystal and ThermoGem FIR Mats, Pads, Vests, Belts, Wraps L, E, H, D series.
- Controllers are not returnable. Please make sure you select the right remote and the same connector as installed on your mat.
- We have more than 30 different controllers and four types of connectors that look similar but are not compatible.
- Please make sure you select the same voltage 110V or 220V as your mat. The 220V controller will not function with the 110V mat and vice versa.
- Still, some of the controllers may not be compatible with your mat, so please contact us to make sure, it will work.
- It's always better to buy the same controller as your old one.
- If your mat does not heat up, and the controller shows ambient temperature, controller replacement will not revive the heating pad. You need a new FIR mat; please contact us for a trade-in or special offer.
- If the controller shows errors, no need to buy a new one. Try to tightly reconnect it to the mat first, and second to the wall socket. It helps in 90% of cases.
- Please contact us at support@MediCrystal.com if you need any assistance, we shall be happy to help you to find a compatible controller!
Details: Controllers for MediCrystal and ThermoGem FIR Mats and Belts

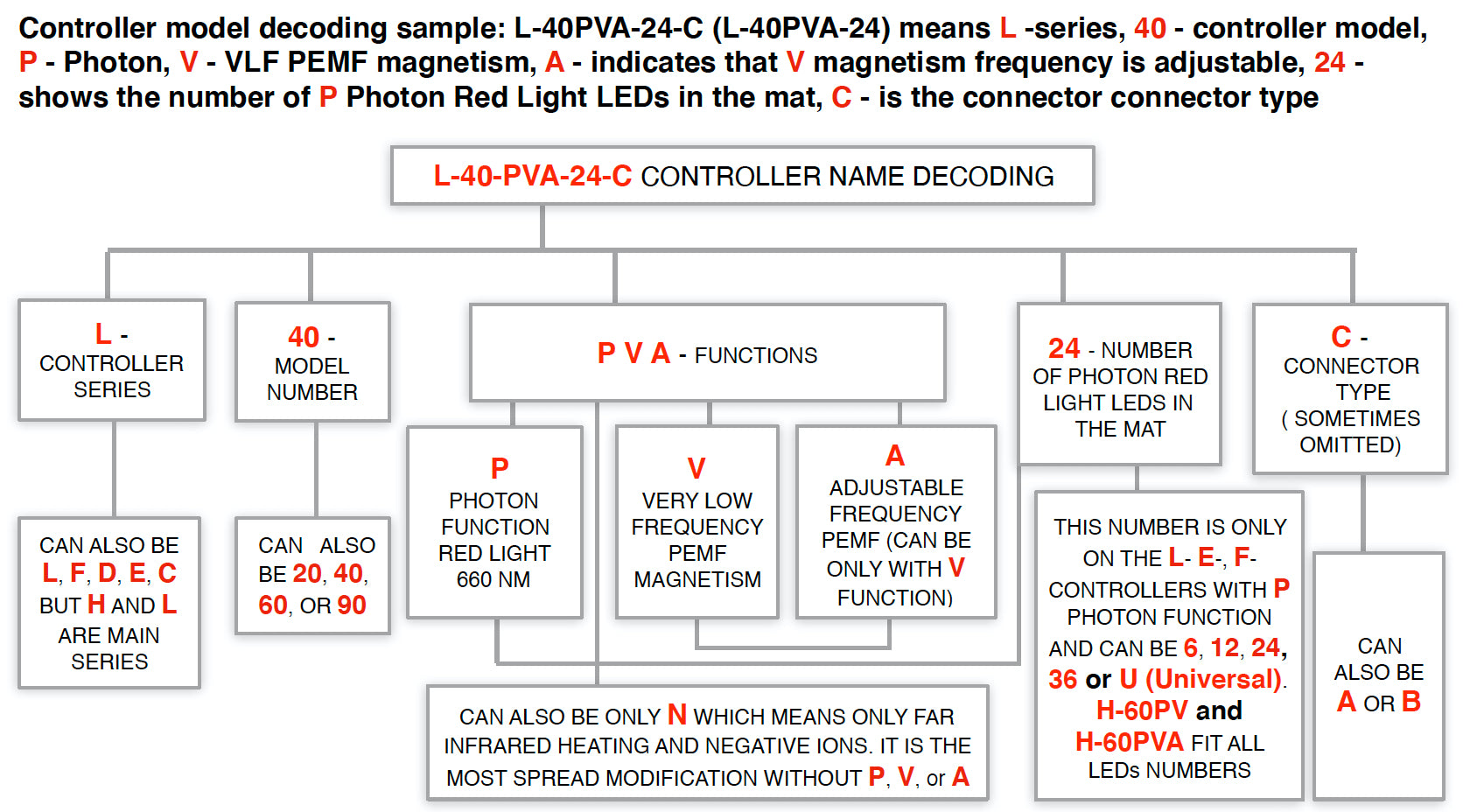

Controller model decoding scheme:

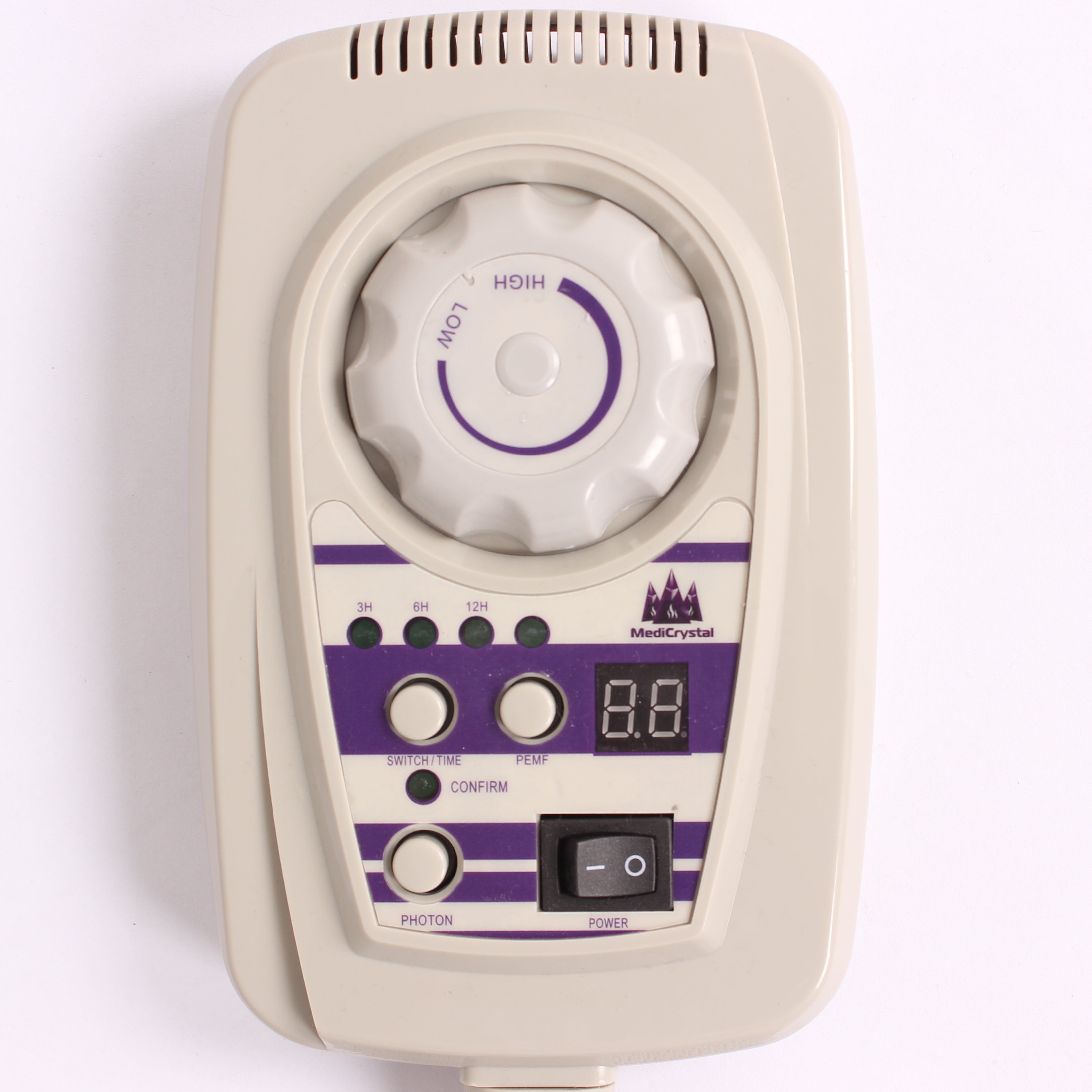

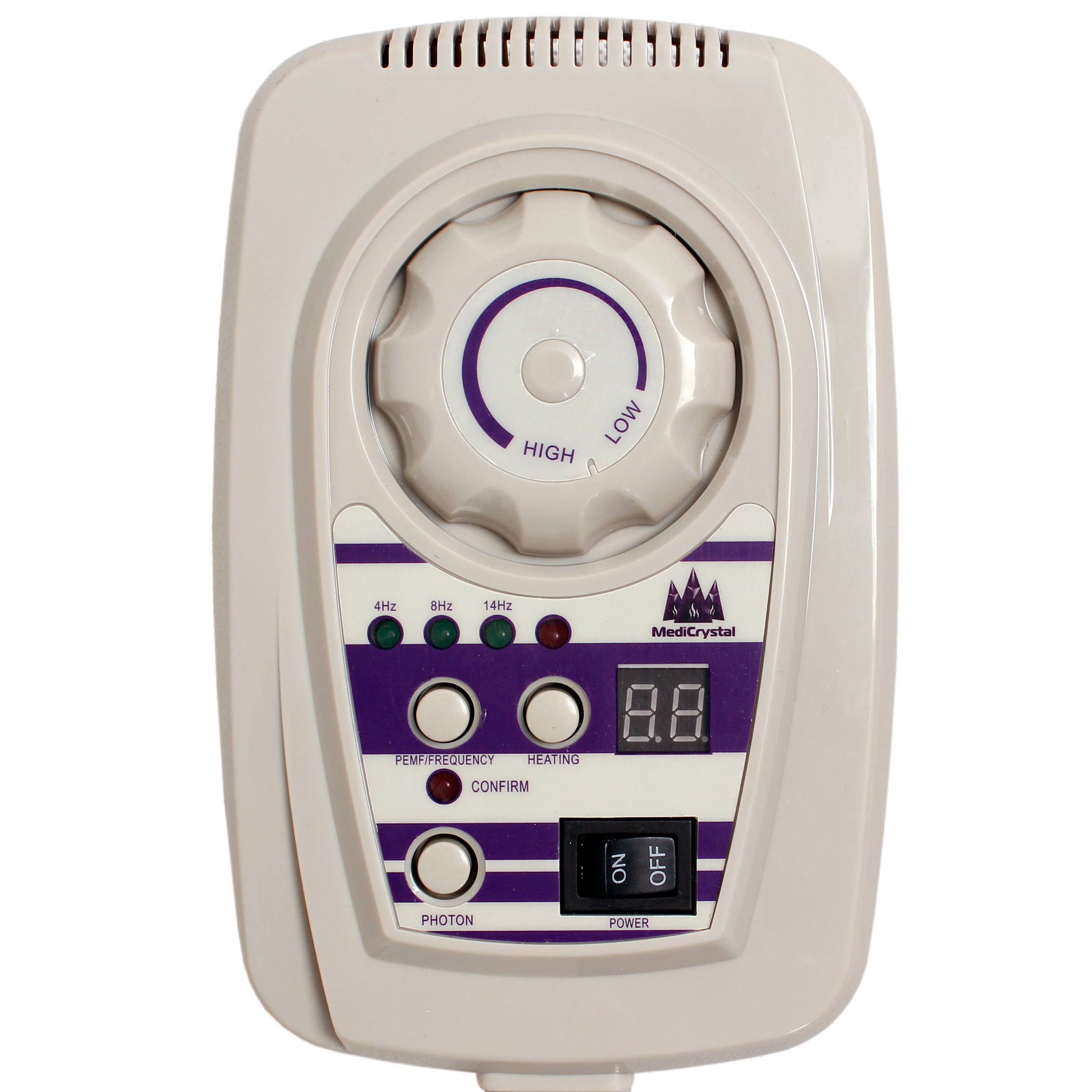

EXAMPLE: L-40PVA-24-C (L-40PVA-24)
The controller's model means:
L -series (L-, D-, E-, H-, etc)
40 - controller model (can be 20, 60, 80, 90)

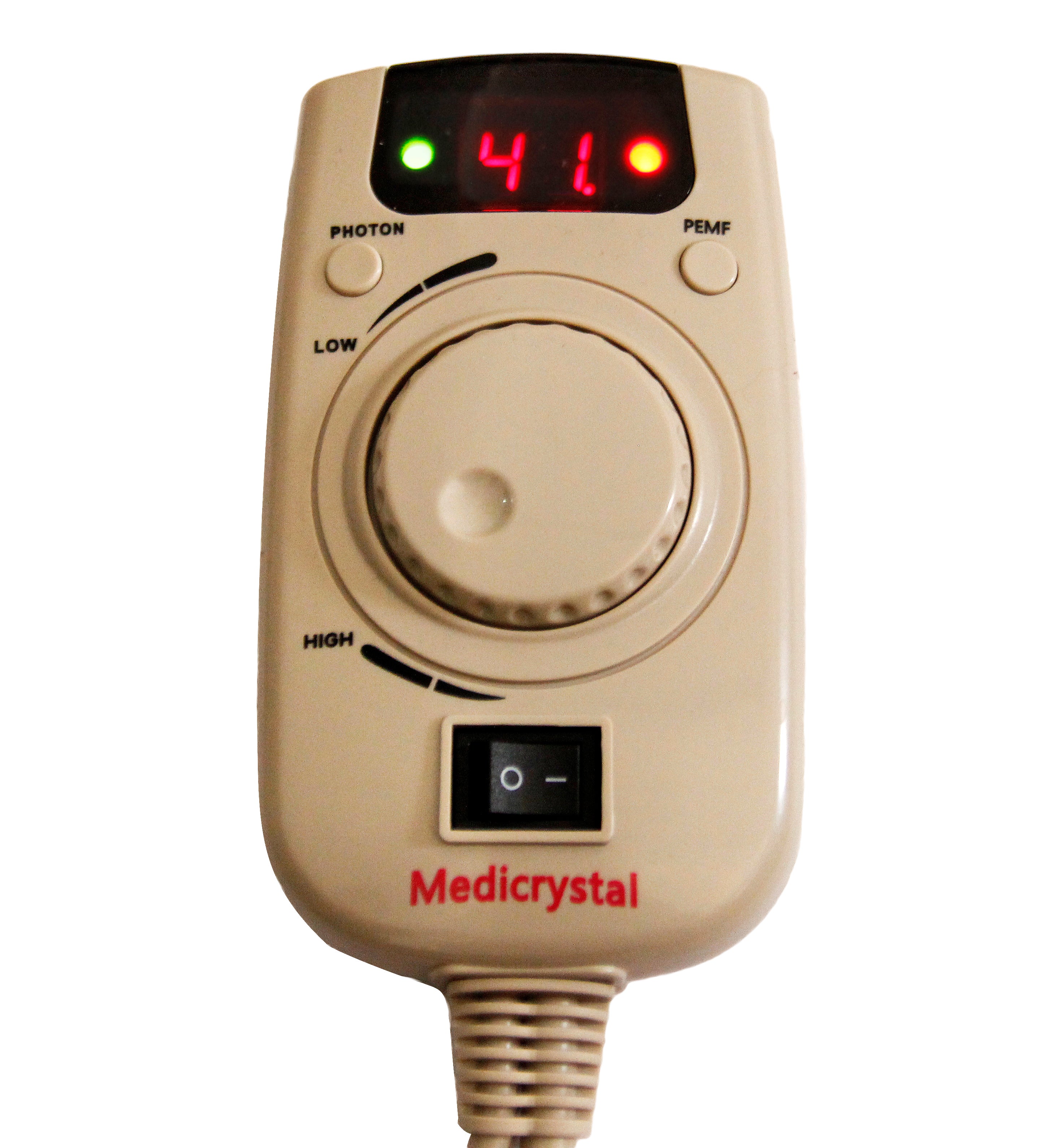

P - Photon Red Light function
V - VLF PEMF magnetism feature

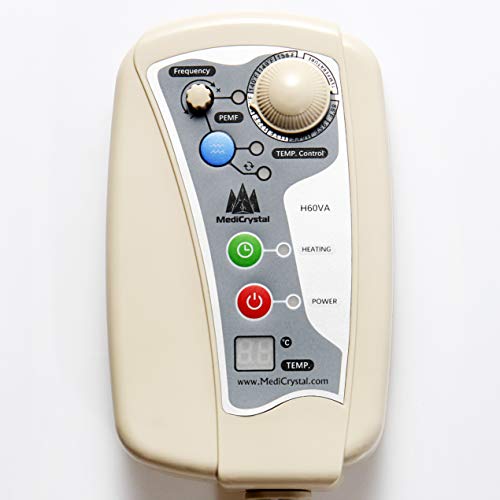

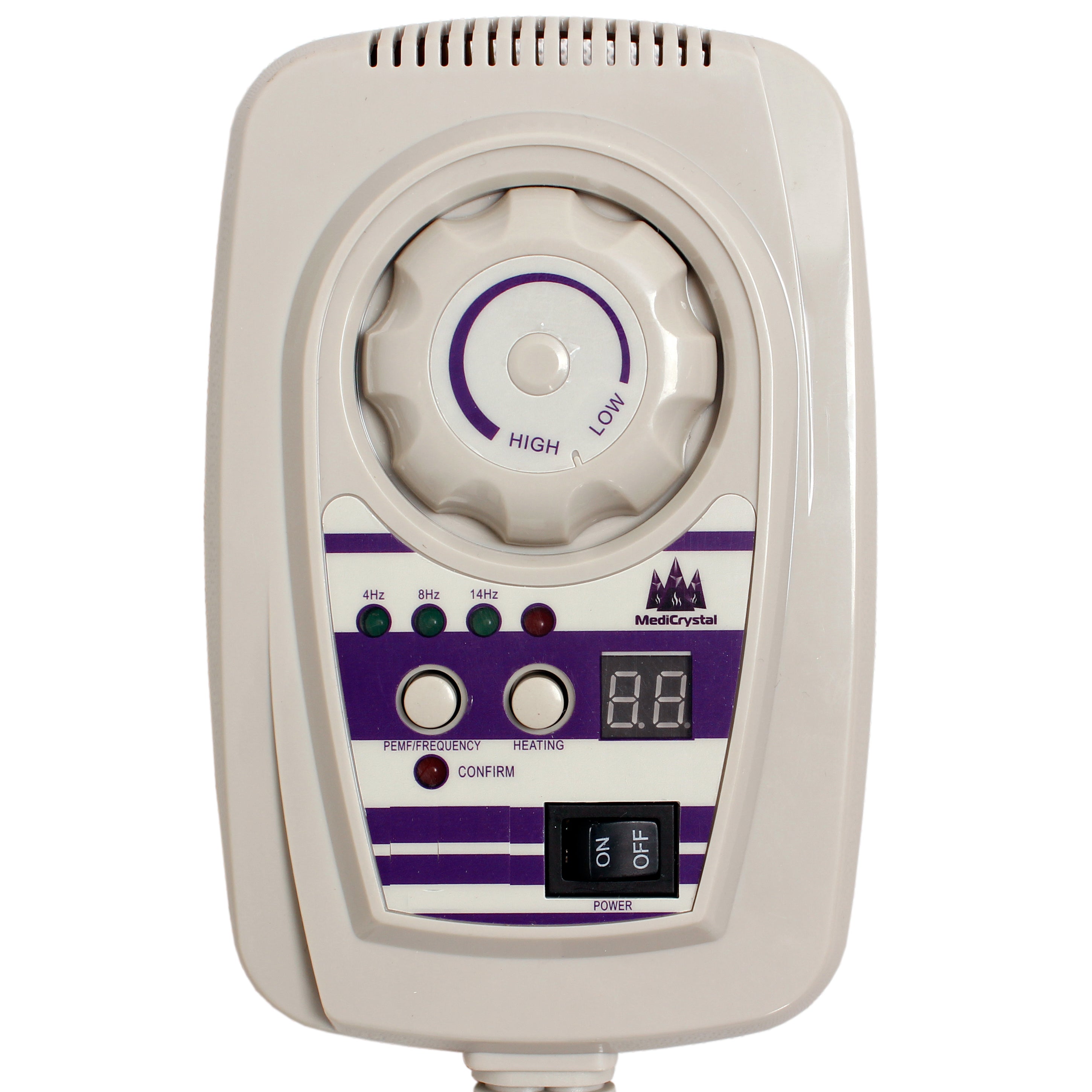

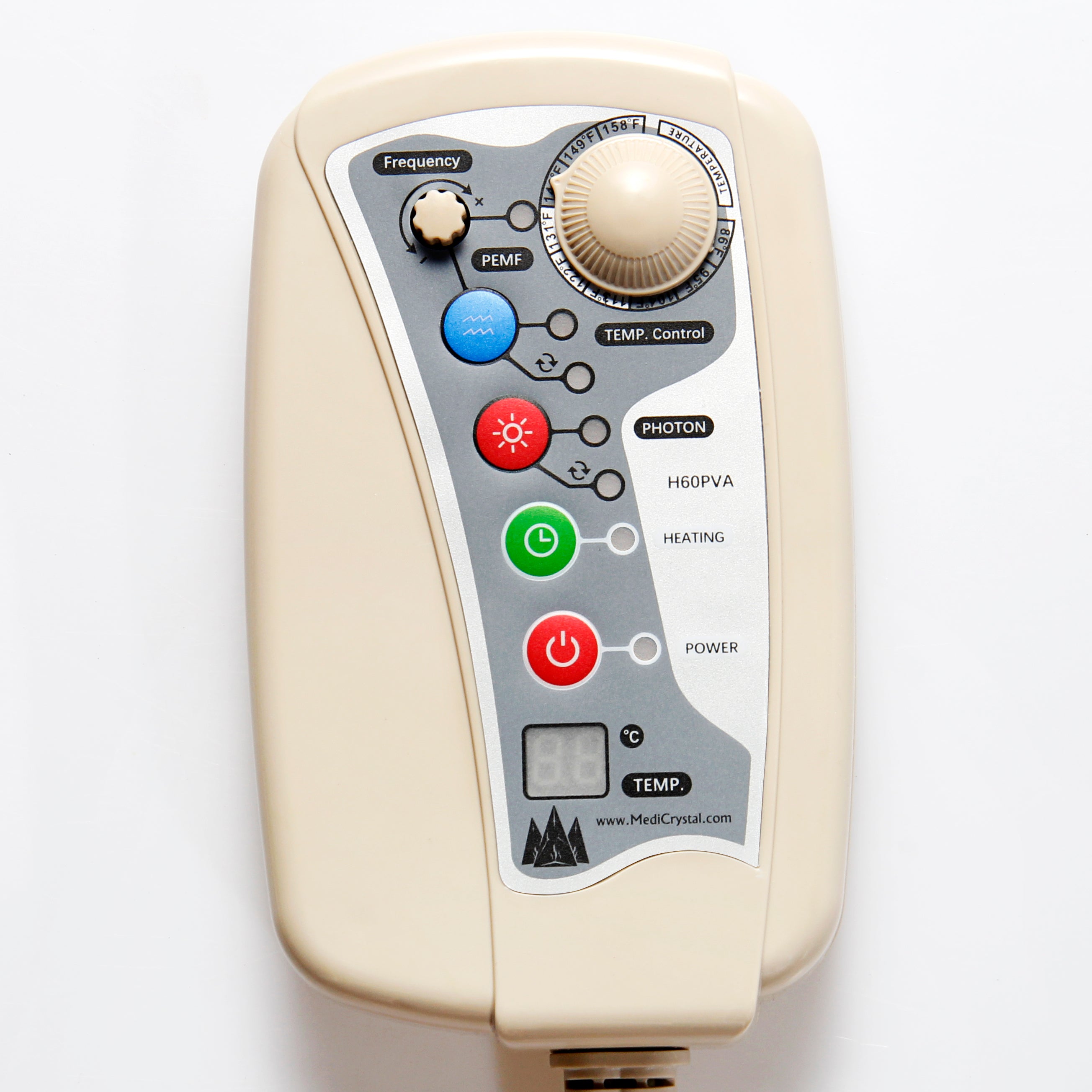

A - indicates that "V" magnetism frequency is adjustable 4Hz, 8Hz, 14Hz in L-40-PVA(VA) or 1-30Hz in H-60PVA(VA)
24 - shows the number of "P" Photon Red Light LEDs in the mat (can be from 6 in mini to 24 or even 36 in large single size mattress)

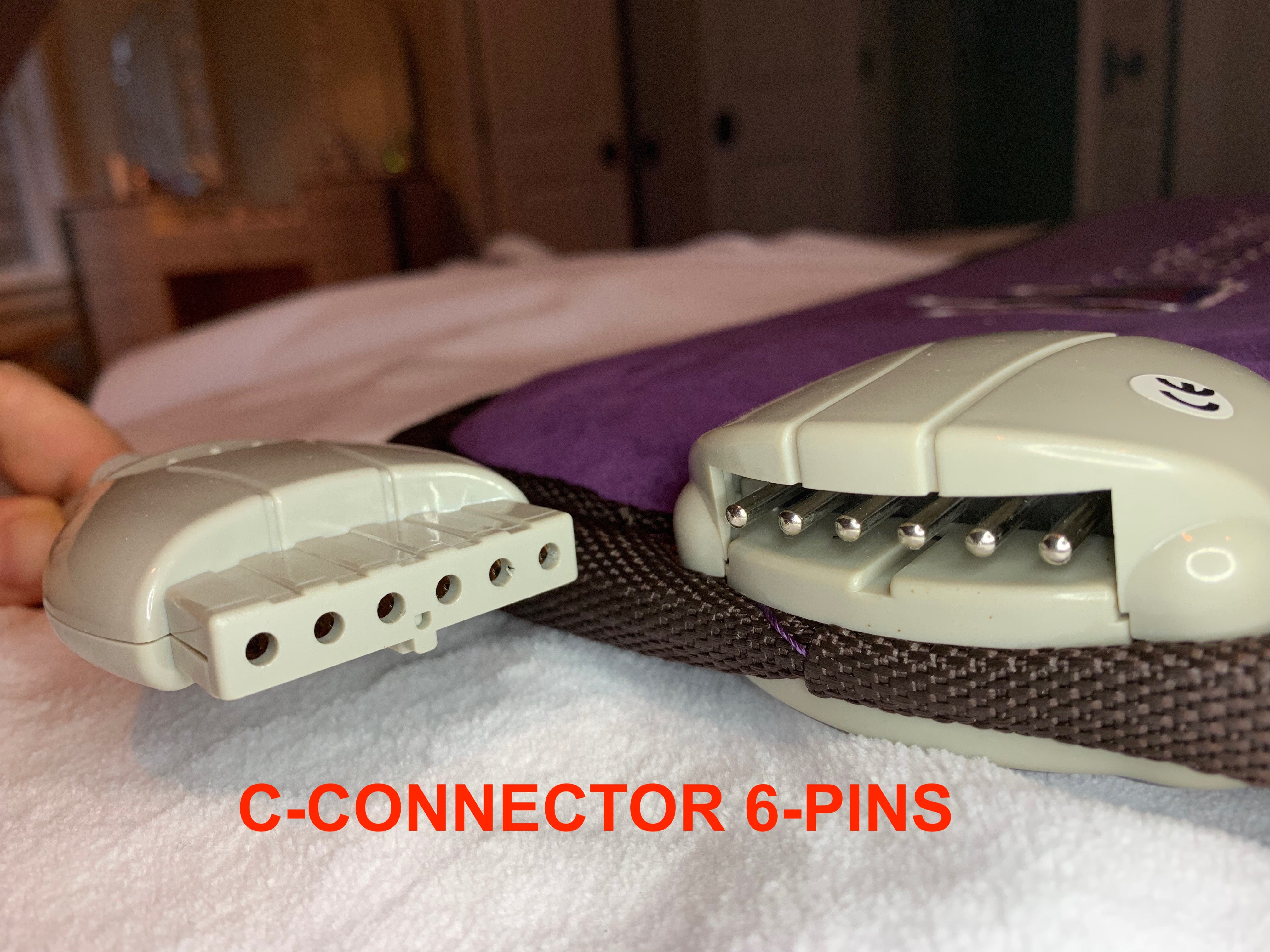

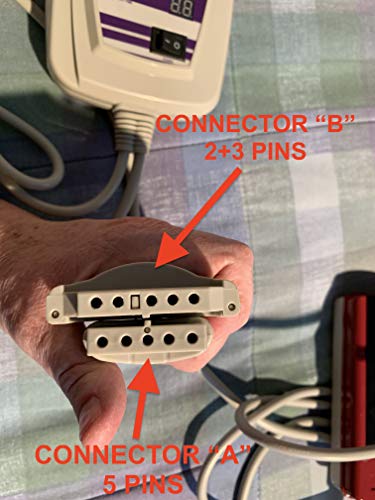

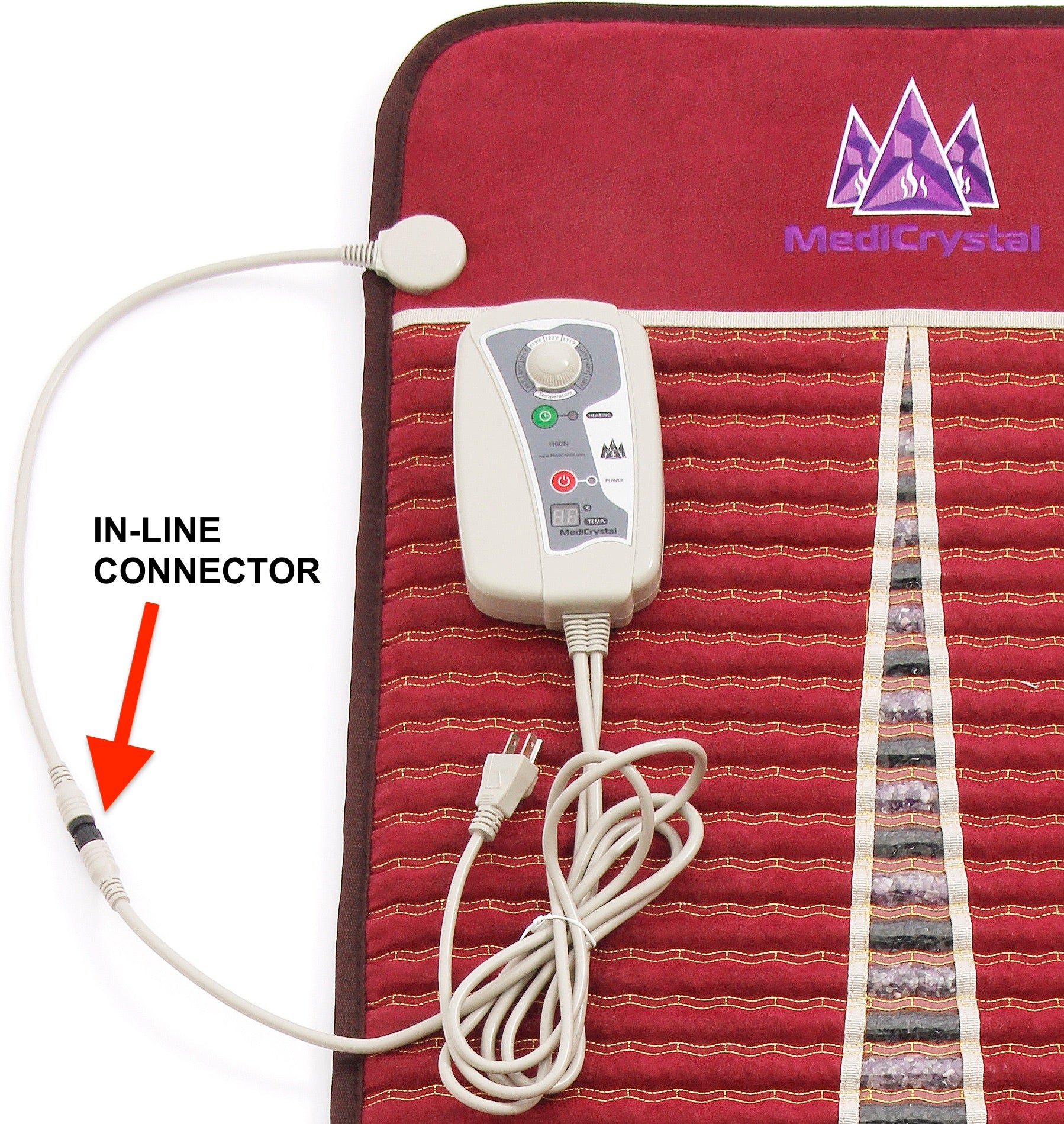

C - is the connector type (A-5 pins, B-2+3 pins, C-6 pins, or IN-LINE)
if you see at the end of the controller's name "-220V", it means that the controller is for the 220-240V European voltage product. If you see nothing, it is the controller for North American 110-120V voltage mats.
Package Dimensions: 10.0 x 8.0 x 3.0 inches, 2 pounds.
Use: Health and Beauty Heated Stone, Red Light, and Pulse Magnetism mats
MEDICRYSTAL MATS CATALOG
MediCrystal® and ThermoGem™ products come either for 110-120V North American (and Japanese voltage) or for 220-240 UK, Europe and other countries power sockets. Please remember you cannot use 110-120V mat in 220-240V country and vice versa. You cannot use 110-120V product with 220-240V controller and vice-versa.
CLASSIC MEDICRYSTAL MATS USER GUIDES
- MediCrystal Classic Infrared Heat Amethyst mats User Guide
- MediCrystal Classic Infrared Heat Amethyst Tourmaline mats User Guide
- MediCrystsl Classic Infrared Heat Queen and King Amethyst Tourmaline mats User Guide
- MediCrystal Classic Infrared Heat Belt, Pad, Wrap User Guide
CLASSIC MEDICRYSTAL MAT CONTROLLERS QUICKSTART GUIDES
MediCrystal Controllers for 110-120V and 220-240V look the same, and usually have the same functionality. However, you cannot use 110-120V mat with 220-240V controller and vice-versa. Step-up or Step-down converter is possible, but never recommended and voids the warranty.

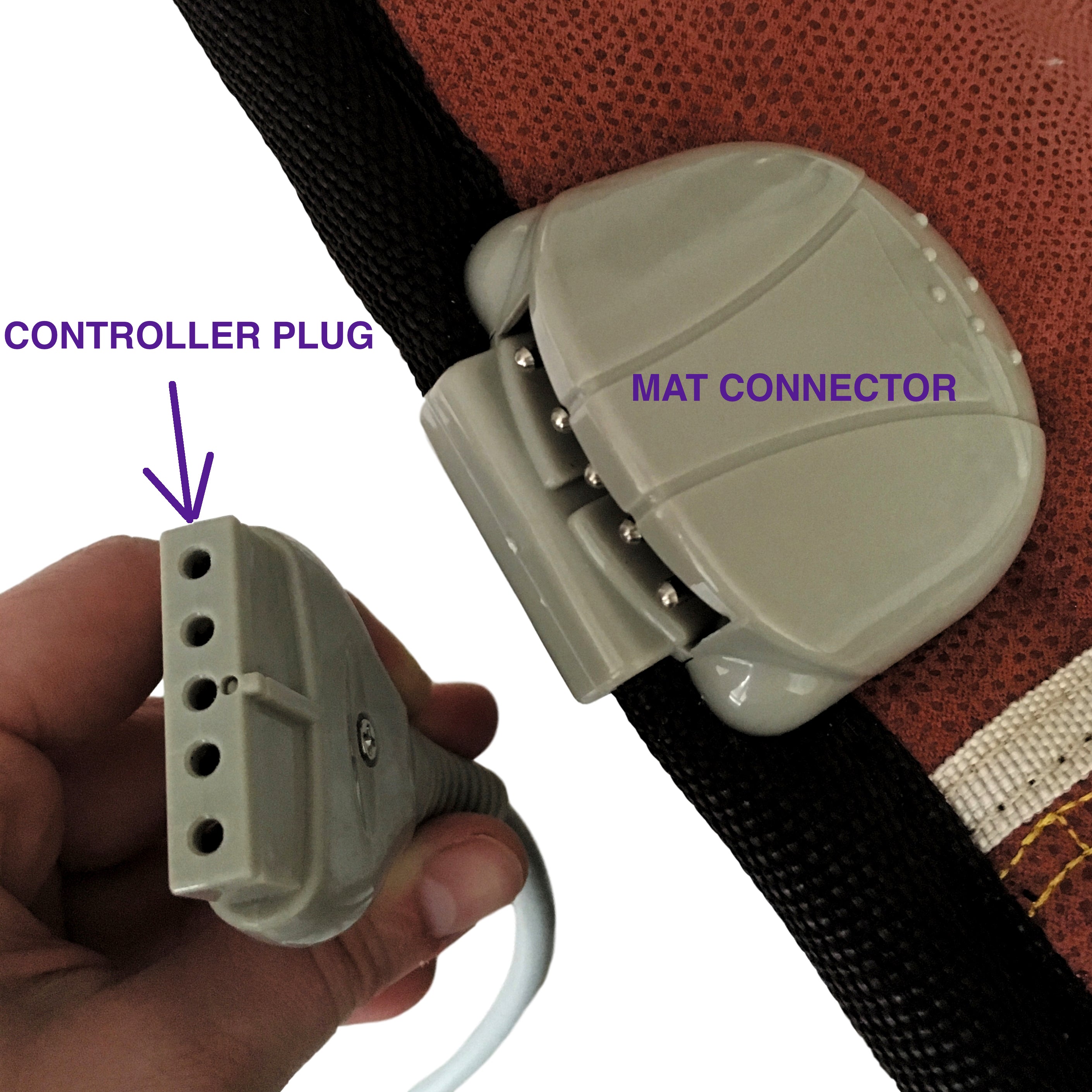

Also, we have several kinds of connectors such as A-connector (5-pins), B-connector (2+3 pins), C-connector (6-pins) and in-line type. Please check our knowledge base for more information, or contact us to make sure you are ordering a compatible remote.
CLASSIC MEDICRYSTAL AMETHYST MAT AND CONTROLLERS QUICKSTART GUIDES

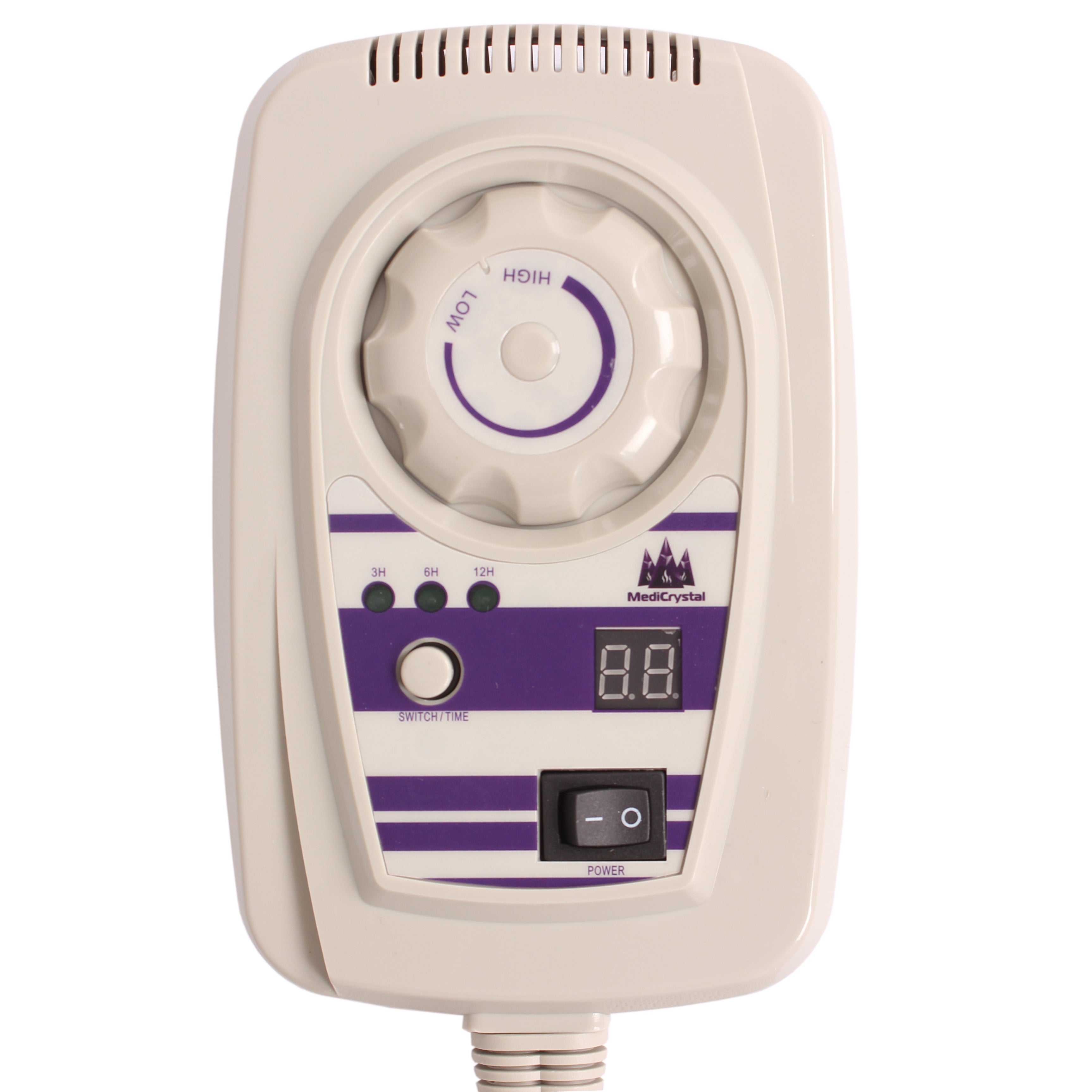

- MediCrystal Classic Infrared Heat Amethyst Mini Mat 20"x32" (50x80 cm) with controller L-40N Quickstart Guide

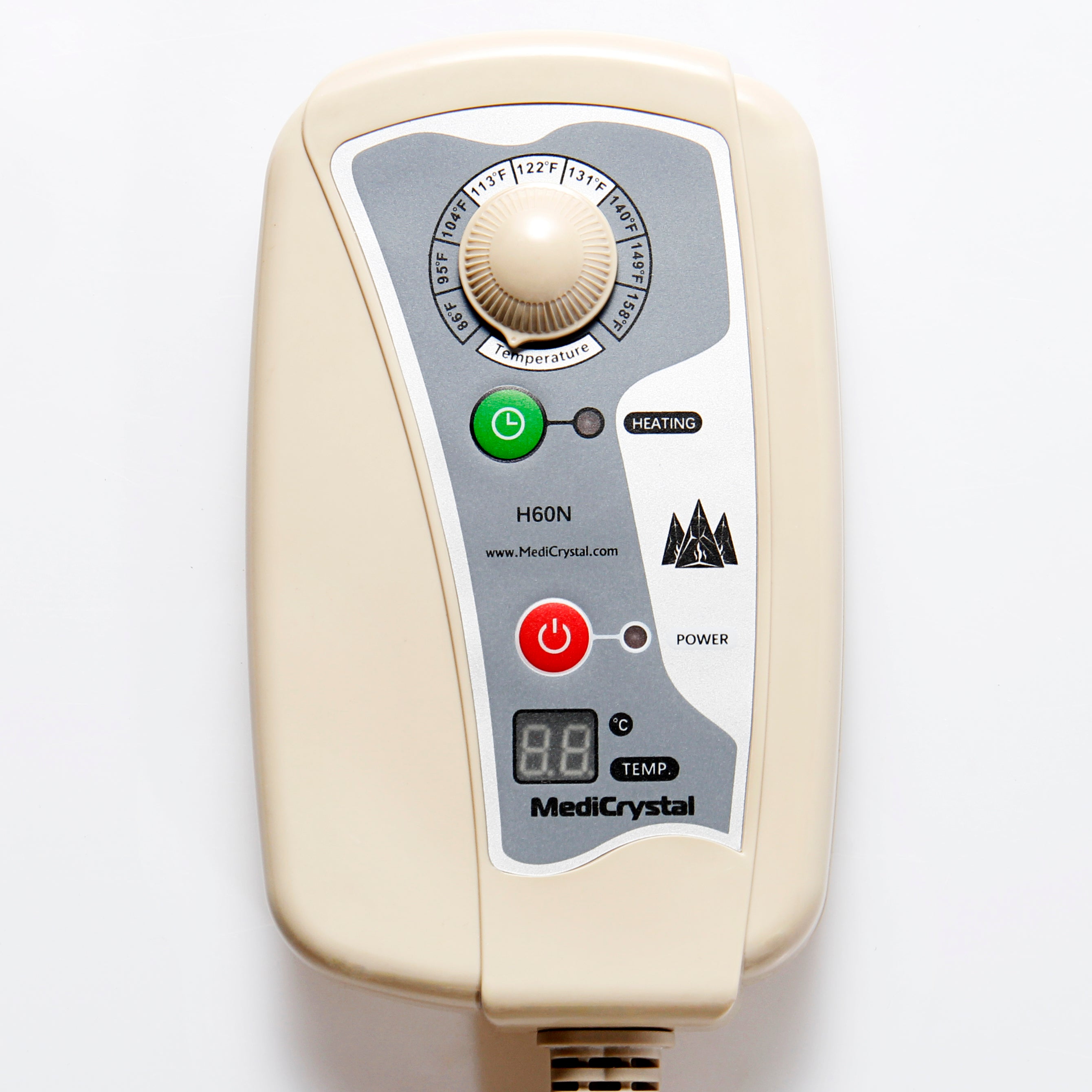

- MediCrystal Classic Infrared Heat Amethyst Mini Mat 20"x32" (50x80 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Compact Mat 22"x48" (55x120 cm) with L-40N controller Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Compact Mat 22"x48" (55x120 cm) with H-60N controller Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Midsize 24"x59" (60x150 cm) Quickstart Guide with controller L-40N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Midsize 24"x59" (60x150 cm) Quickstart Guide with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Full-size 24"x72" (60x180 cm) with controller L-40N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Full-size 24"x72" (60x180 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Professional 31"x72" (80x180 cm) with controller L-40N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Professional 31"x72" (80x180 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Single 39"x75" (100x190 cm) with controller L-40N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Single 39"x75" (100x190 cm) with controller H-60N Quickstart Guide

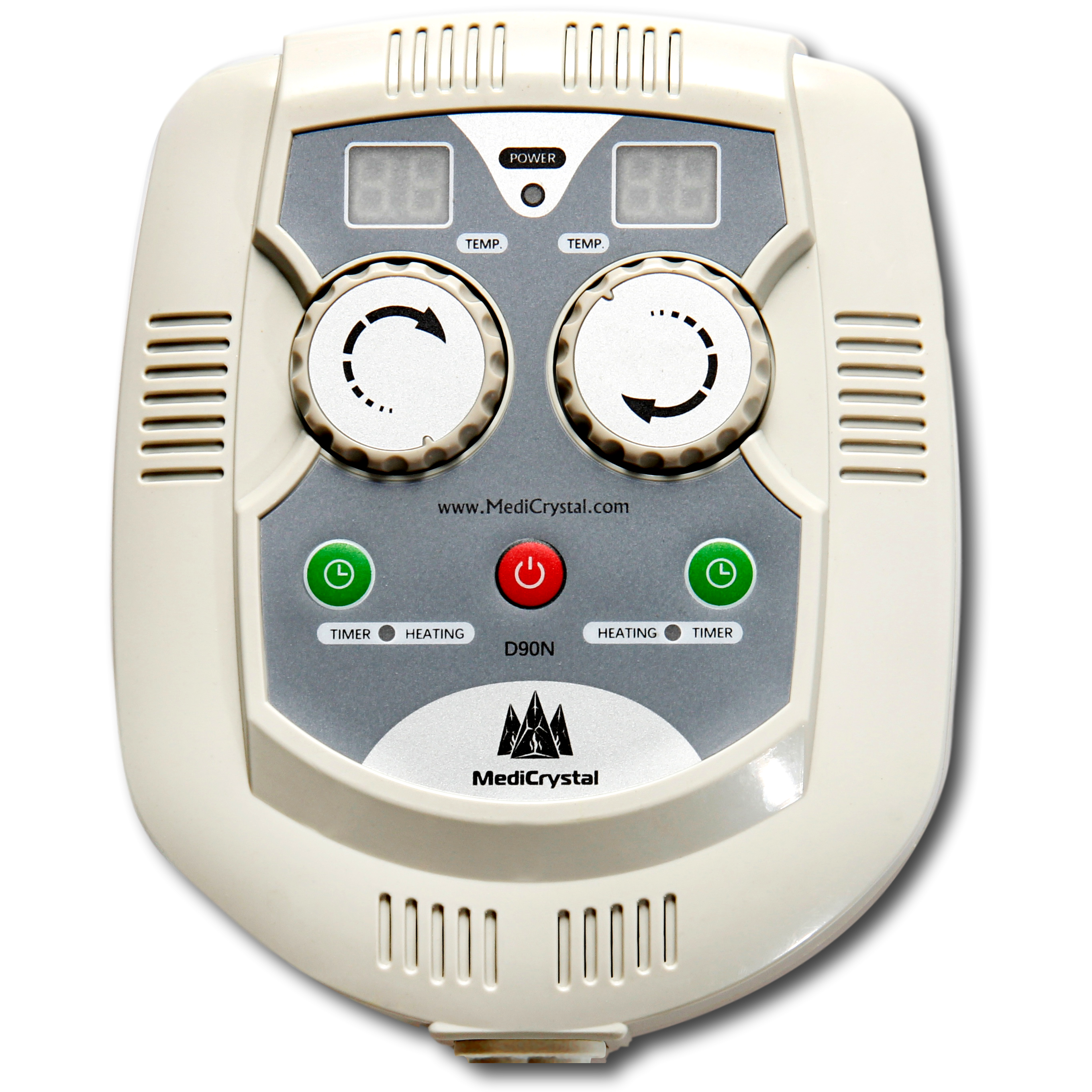

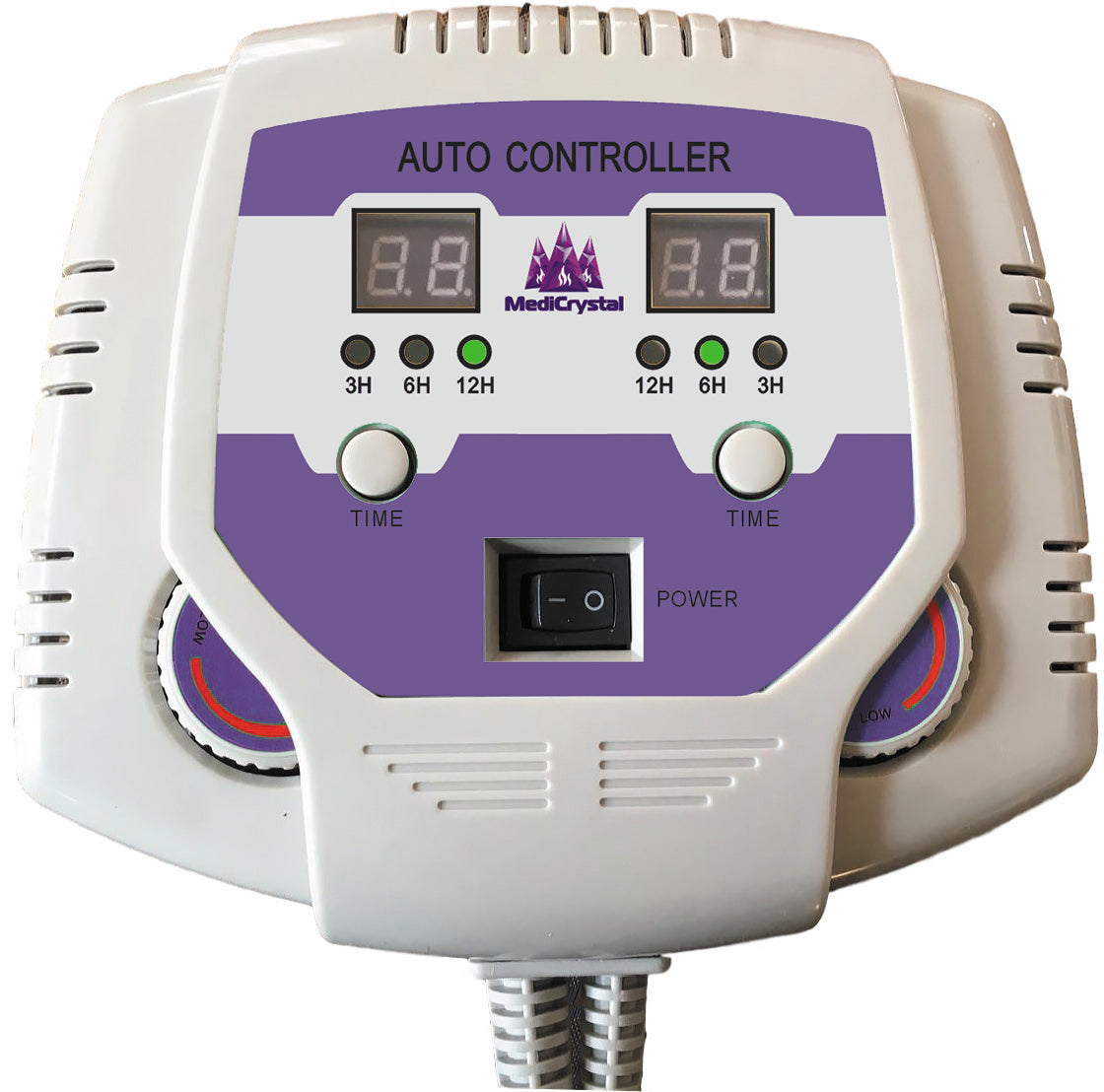

- MediCrystal Classic Infrared Heat Amethyst Mat Queen 59"x75" (150x190 cm) with controller D-80N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Mat Queen 59"x75" (150x190 cm) with controller D-90N Quickstart Guide
Amethyst-Tourmaline mats come either with 50%/50% Amethyst to Tourmaline ratio. red-violet suede, and triangle window showing crystals, or with 75% to 25% Amethyst Tourmaline proportion, red-brown color and V-mat design. These mats use the same L- or H-series controllers.
CLASSIC MEDICRYSTAL AMETHYST TOURMALINE MAT QUICKSTART GUIDES (triangle design)
- MediCrystal Classic Infrared Heat Amethyst Tourmaline Mini Mat 20"x32" (50x80 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Tourmaline Compact Mat 22"x48" (55x120 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Tourmaline Mat Midsize 24"x59" (60x150 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Tourmaline Mat Full-size 24"x72" (60x180 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Tourmaline Mat Professional 31"x72" (80x180 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Tourmaline Mat Single 39"x75" (100x190 cm) with controller H-60N Quickstart Guide
- MediCrystal Classic Infrared Heat Amethyst Tourmaline Mat King 75"x79" (190x200 cm) with controller D-90N Quickstart Guide
